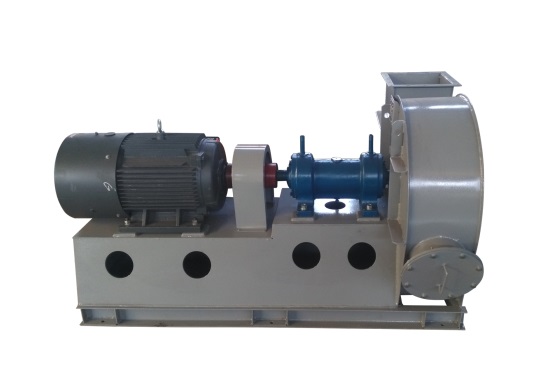

Forced draft fan in thermal power plant

Forced draft fan in thermal power plant

The induced draft fan are made into a single suction form. Number № 8-29.5 Each of the 20 numbers has a total of 40 specifications. Each Forced Draft fan can be made into left-handed or right-handed form. When viewed from one end of the motor, the impeller rotates clockwise. It is a right-handed fan, which rotates counterclockwise, which is called a left-handed fan. The fan transmission mode is D type (that is, cantilever structure), and it can also be made into F type according to requirements. With elastic coupling, direct drive.

Description

Forced draft fan in thermal power plant
Boiler Force Draft Fans are good for the air supply and induction system of 2-670t steam boiler in thermal power plants, and also meets the high requirements of sulfurized bed furnaces. Requirements for indented performance parameters. This Boiler Forced Draft Fans can also be used in dust removal, mine ventilation and general ventilation systems. The blower conveys air, and the induced draft conveys smoke or foreign particles. Contains impurities less than 200 mg / m3 can be used for more than 4 years. It can also be used if it contains large impurities, but the service life will be shortened. Supply and use of induced wind The temperature must not exceed 250 °C.

Y6-51/14D

Model Air flow m3/h Full Pa Speed Temp(°C) Internal(effective)% Internal power Kw Required power Kw
14 58996 6049 1450 140 75 130.6 163.3
70795 5949 78 148.2 185.3
82320 5753 81 160.6 200.7
94119 5456 83 170.1 212.6
105918 5159 82 183.2 229.0
117718 4866 80 197.0 246.2
129517 4473 77 207.1 258.9
141316 4080 74 214.7 268.4
