Description

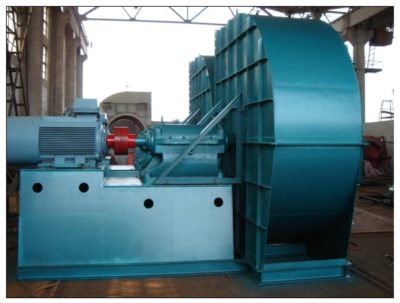

Industrial Boiler Forced Draft fans, FD Fans
Boiler Force Draft Fans are good for the air supply and induction system of 2-670t steam boiler in thermal power plants, and also meets the high requirements of sulfurized bed furnaces. Requirements for indented performance parameters. This Boiler Forced Draft Fans can also be used in dust removal, mine ventilation and general ventilation systems. The blower conveys air, and the induced draft conveys smoke or foreign particles. Contains impurities less than 200 mg / m3 can be used for more than 4 years. It can also be used if it contains large impurities, but the service life will be shortened. Supply and use of induced wind The temperature must not exceed 250 °C.
Y6-51/14D
| Model | Air flow m3/h | Full Pa | Speed | Temp(°C) | Internal(effective)% | Internal power Kw | Required power Kw |
| 14 | 58996 | 6049 | 1450 | 140 | 75 | 130.6 | 163.3 |
| 70795 | 5949 | 78 | 148.2 | 185.3 | |||
| 82320 | 5753 | 81 | 160.6 | 200.7 | |||
| 94119 | 5456 | 83 | 170.1 | 212.6 | |||
| 105918 | 5159 | 82 | 183.2 | 229.0 | |||
| 117718 | 4866 | 80 | 197.0 | 246.2 | |||
| 129517 | 4473 | 77 | 207.1 | 258.9 | |||
| 141316 | 4080 | 74 | 214.7 | 268.4 |
